HITEC HS-7965MG High Speed, Metal Gear Coreless Premium Digital Servo

RM 140.00



Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
Operating Voltage Range:
4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C (-4F to +140F)
Operating Speed (4.8V): 0.13sec/60° at no load
Operating Speed (6.0V): 0.10sec/60° at no load
Stall Torque (4.8V): 111oz/in. (
Stall Torque (6.0V): 139oz/in. (

Operating Angle: 45 Deg. one side pulse traveling 400usec

Continuous Rotation ModifiableYes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Idle Current Drain (4.8V): 3mA at stop
Idle Current Drain (6.0V): 3mA at stop
Current Drain (4.8V): 200
mA/idle and 2.0 amps at lock/stall
Current Drain (6.0V): 240mA/idle and 3.0 amps at lock/stall
Dead Band Width: 2usec
Motor Type: Coreless Carbon Brush
Potentiometer Drive: 6 Slider Indirect Drive
Bearing Type: Dual Ball Bearing MR106
Gear Type: 3 Metal, 1 Metal Karbonite Gear
Connector Wire Length: 7" (178mm)

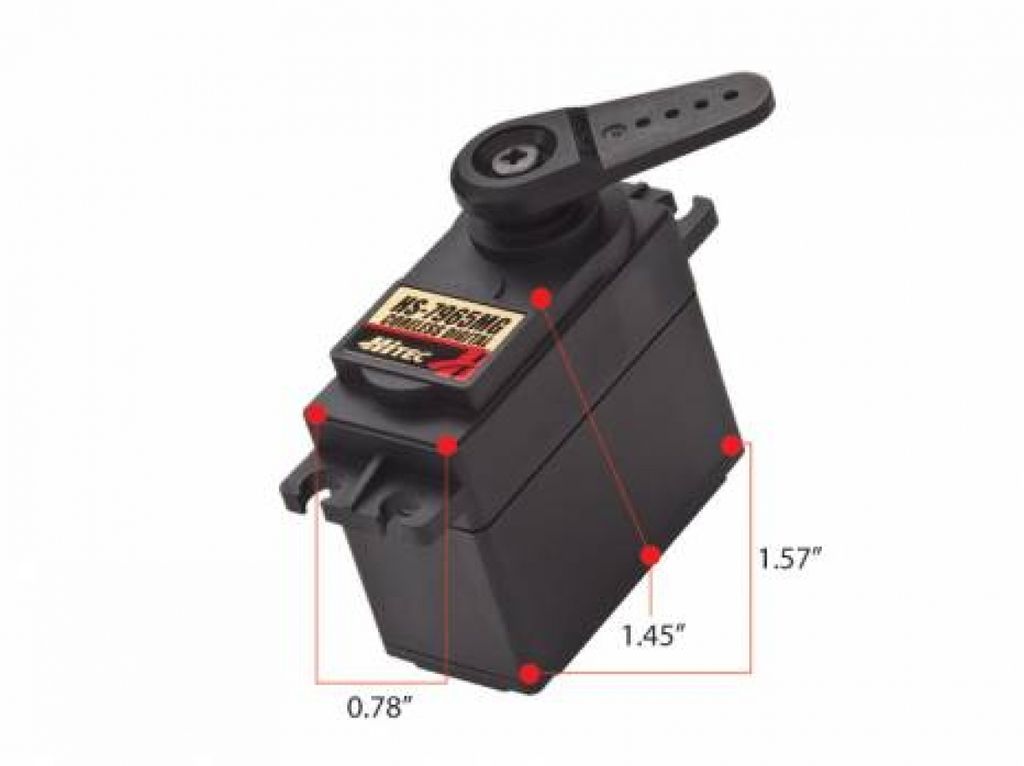

Dimensions: 1.57" x 0.78"x 1.45" (40 x 20 x 37mm)
Weight: 2.18oz (62g)
