GW/EDF-55A Electric Ducted Fan Power Syatem=GWEDF055A

RM 0.00
View More

GWS 55 size EDF System

Suits motors with a diameter no larger than 23.9mm

This kit comes with the GWS 300H motor installed. It can be replaced with a brushless motor for better performance.

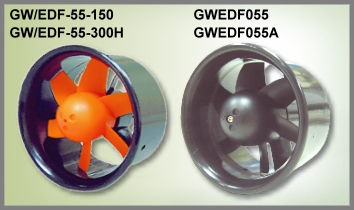

GW/EDF-55 ELECTRIC DUCTED FAN POWER SYSTEM
















GW/EDF55-150

GW/EDF55-300H

GWEDF055   (EDF55-150(2245*6)

GWEDF055A (EDF55-300 (2245*6)

GWEDF055B (EDF55-150(2245*6)Motor not included

GWEDF055C EDF55-BL2028/blue

GWEDF055D EDF55-BL2028/Green

GWEDF055F EDF55-300H(2245*6)Motor not included


WEIGHT : 66.9~73.4g


RED : High voltage boosts power , but fatally damages the motor (Don't use)
Click here photo to view : PHOTO(1)  ,  PHOTO(2) , PHOTO(3)

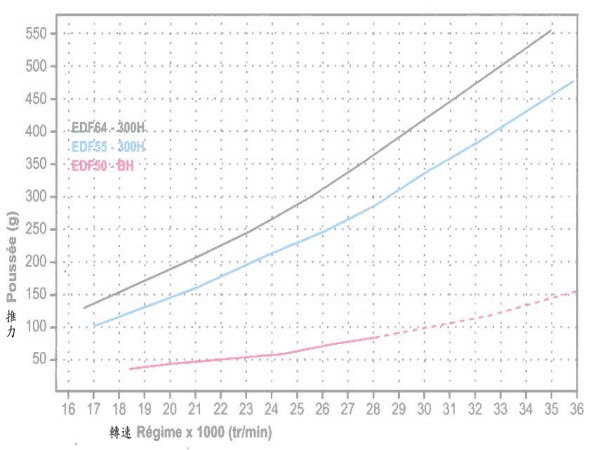

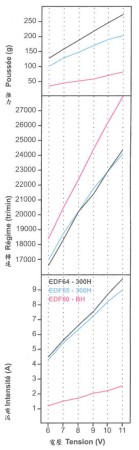

The following test datas have been noted all by applying continual high RPMs for 5 minutes respectively.

POWER SYSTEM: EDF-55     Motor: GWBLM005 Weight: 57 Grams KV value: 4600
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2245X6 7.4 9.2 188.00 6.63 68.08 2.76 97.40 37 23250
EP2245X6 11.1 17.1 381.00 13.44 189.81 2.01 70.80 50 31950

POWER SYSTEM: EDF-55     Motor: GWBLM005C Weight: 57 Grams KV value: 2300
PROPELLER Volts (V) Amps (A) Thrust Power (W) Efficiency Temp. RPM
g oz g/w oz/kw C.
EP2245X6 7.4 2 63.00 2.22 14.80 4.26 150.14 31 13900
EP2245X6 11.1 3.8 144.00 5.08 42.18 3.41 120.41 35 20450
EP2245X6 14.8 6.1 241.00 8.50 90.28 2.67 94.15 40 26300

POWER SYSTEM: EDF-55     Motor: GWBLM005A Weight: 57 Grams KV value: 3900
PROPELLER Volts (V) Amps (A)
